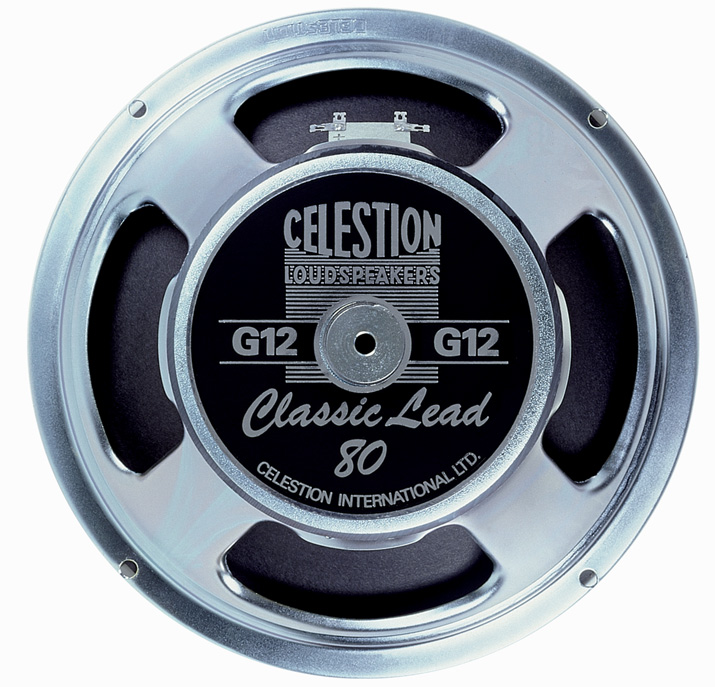

Classic Lead 80

Developed in the late ’70s, the Classic Lead uses a fibreglass voice coil former to deliver an 80W power rating and a unique dynamic sound. A firm favourite with lead guitarists, the Classic Lead features a tightly controlled low-end, with strong high bass / low mid punch, aggressive mid range attack and a powerful yet controlled top-end. For power chords it has the tone to make its presence felt but the subtle highfrequency roll-off makes it ideal for solos, able to project single notes on loud stages without becoming shrill.

GENERAL SPECIFICATIONS

Nominal diameter . . . . . . . . . . . . .12", 305mm Power rating . . . . . . . . . . . . . . .80W Nominal impedance. . . . . . . . . . . . .8Ω & 16Ω Sensitivity. . . . . . . . . . . . . . . .99dB Chassis type. . . . . . . . . . . . . . . Pressed steel Voice coil diameter . . . . . . . . . . . 1.75", 44.5mm Voice coil material. . . . . . . . . . . .Round copper Magnet type. . . . . . . . . . . . . . . .Ceramic Magnet weight . . . . . . . . . . . . . . 50oz, 1.42kg Frequency range. . . . . . . . . . . . . .80-5000Hz Resonance frequency, Fs. . . . . . . . . .85Hz DC resistance, Re . . . . . . . . . . . . 6.9Ω & 11.8Ω

MOUNTING INFORMATION

Diameter . . . . . . . . . . . . . . . . .12.2", 309mm Overall depth. . . . . . . . . . . . . . .5.3", 135mm Magnet structure diameter . . . . . . . . 6.1", 156mm Cut-out diameter. . . . . . . . . . . . . 11.1", 283mm Mounting slot dims . . . . . . . . . . . .0.31", 7.9mm Ø Number of mounting slots. . . . . . . . . 4 Mounting slot PCD. . . . . . . . . . . . 11.7", 297mm Unit weight. . . . . . . . . . . . . . . .10.4lb, 4.7kg
